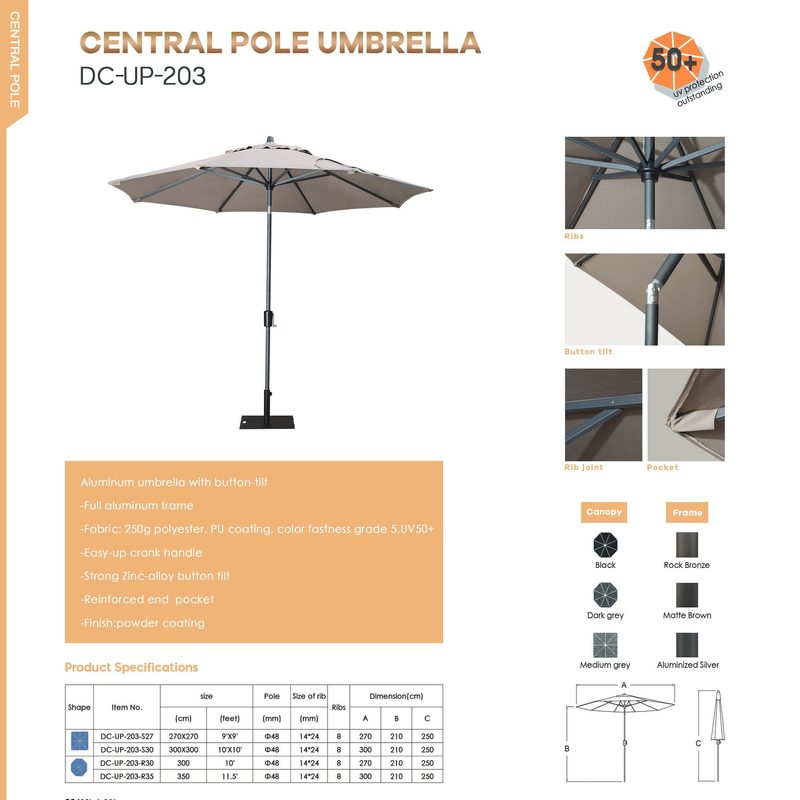

Central Pole Umbrella
Classic market umbrellas with crank-and-tilt operation, 2–3.5 m diameter.
View Details
Cantilever Umbrella
Offset shade with no center pole — 360° rotation, stepless tilt and solar LED rib lighting, built on a Φ120×83 mm oval aluminum mast.
Model DC-LUP-117 · Solar LED

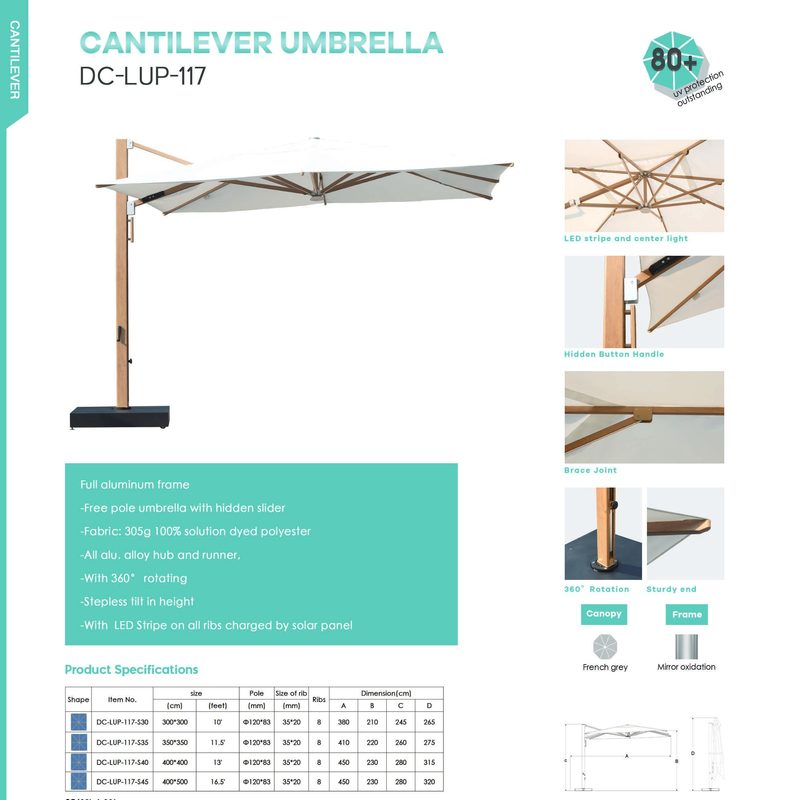

DC-LUP-117 — LED Cantilever Parasol
Our best-selling offset umbrella for residential terraces and hospitality decks
The DC-LUP-117 keeps the entire seating area clear of any pole. A hidden slider and counter-balanced arm let one person open, tilt and rotate the canopy without effort, while a solar-charged LED strip runs along every rib with a center light for evenings.
- Canopy Fabric305 g/m² solution-dyed polyester
- UV Protection80+ with anti-fade & water-repellent finish
- MastΦ120 × 83 mm oval aluminum
- Rib Profile35 × 20 mm — 8 ribs
- MechanismHidden slider, 360° rotation, stepless tilt
- LightingSolar LED strip on all ribs + center light + USB port
- Canopy ColorsFrench grey (custom Pantone on request)
- Frame FinishMirror oxidation aluminum / wood-grain option
Dimensions
Size & Geometry
A = canopy span · B = height to canopy top · C = clearance height · D = mast height. Drawing reproduced from our factory catalog.
| Model | Canopy (cm) | A (cm) | B (cm) | C (cm) | D (cm) |
|---|---|---|---|---|---|
| DC-LUP-117-S30 | 300 × 300 | 380 | 210 | 245 | 265 |
| DC-LUP-117-S35 | 350 × 350 | 410 | 220 | 260 | 275 |
| DC-LUP-117-S40 | 400 × 400 | 450 | 230 | 280 | 315 |
| DC-LUP-117-S45 | 400 × 500 | 450 | 230 | 280 | 320 |
Base selection: match the base to canopy size and wind exposure — cross base, resin-fillable base, granite base or in-ground mount. Our engineers confirm the right base for every order.
Also in This Series
DC-UP-117 — Cantilever Without LED
The same mast, arm and canopy engineering as the DC-LUP-117, supplied without the LED lighting system for buyers who do not need evening illumination.
Model DC-UP-117
DC-UP-117 — Full Aluminum Cantilever
Detachable hub, hidden button handle and all-aluminum hub & runner
Full aluminum frame with the same Φ120×83 mm oval mast and 35×20 mm ribs as the LED version. The detachable hub speeds up assembly, and the hidden button handle keeps the pole profile clean.
- Canopy Fabric305 g/m² solution-dyed polyester
- UV Protection80+
- MastΦ120 × 83 mm oval aluminum
- Rib Profile35 × 20 mm — 8 ribs
- Hub & RunnerAll-aluminum alloy
- MechanismHidden slider, 360° rotation, stepless lift
| Model | Canopy (cm) | A | B | C | D |
|---|---|---|---|---|---|
| DC-UP-117-S30 | 300 × 300 | 380 | 210 | 245 | 265 |
| DC-UP-117-S35 | 350 × 350 | 410 | 220 | 260 | 275 |
| DC-UP-117-S40 | 400 × 400 | 450 | 230 | 280 | 315 |
| DC-UP-117-S45 | 400 × 500 | 450 | 230 | 280 | 320 |
Engineering
Why Buyers Specify the 117 Series
Free Pole Design
The offset arm keeps the seating area completely clear — no center pole to work around.
360° Rotation & Stepless Tilt
Rotate the canopy around the base and lock the tilt at any angle to follow the sun.
Solar LED Rib Strip
DC-LUP-117: LED strip on all 8 ribs plus a center light, charged by solar panel with USB port.
Oval Reinforced Mast
Φ120×83 mm oval profile resists bending and wind load better than round masts.
Solution-Dyed 305 g/m² Canopy
Color locked into the fiber — grade 4+ fastness, UV 80+ and water-repellent finish.
Sturdy End & Brace Joint
Reinforced canopy edge pockets and a braced arm joint extend the working life in wind.
Also available: Protection covers, cross / resin-fillable / granite bases, replacement canopies, side panels and spare LED components — consolidated into your cantilever order.
